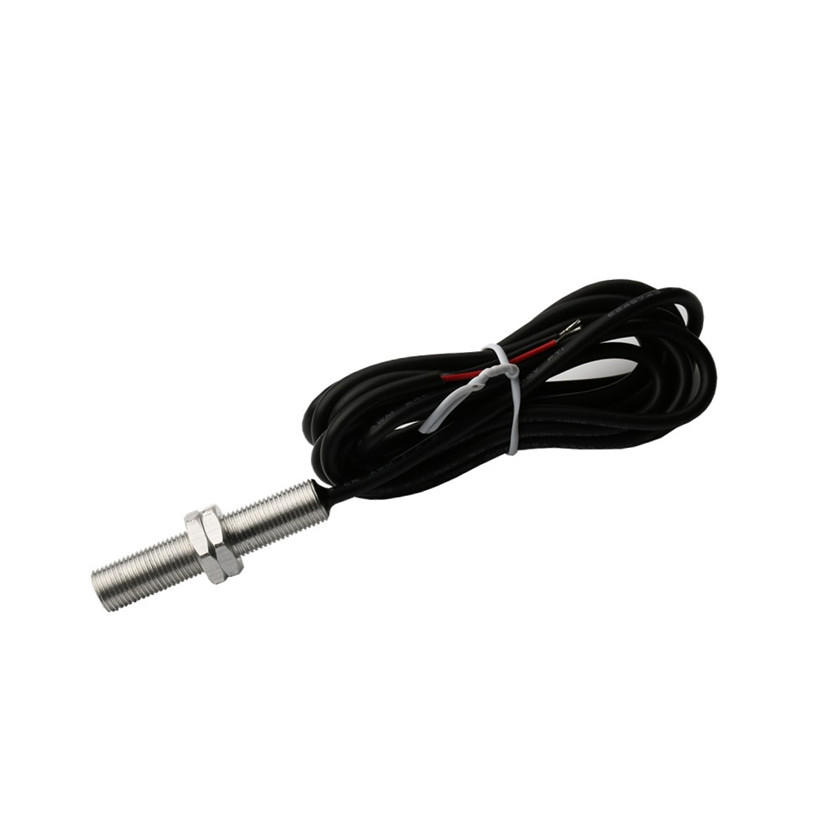

MS-600-08 Hall effect sensor for position detection
MS-600-08 Hall effect sensor for position detection
MS-600-08 Hall effect sensor for position detection
Product Name : MS-600-08 Hall effect sensor for position detection
Hall sensors are commonly used to time the speed of wheels and shafts, such as for internal combustion engine ignition timing, tachometers and anti-lock braking systems. They are used in brushless DC electric motors to detect the position of the permanent magnet. In the pictured wheel with two equally spaced magnets, the voltage from the sensor will peak twice for each revolution. This arrangement is commonly used to regulate the speed of disk drives.
Support Hotline : 0755-23699909
Product Details

♦Model number : MS-600-02

♦working voltage: DC. 8V~30V

♦Reverse Breakdown Voltage:DC.30V MIN

Low-Level Current:DC.35mA MAX

♦ Bop(Gs):120~180

♦Brp(Gs)  : 70 MIN
